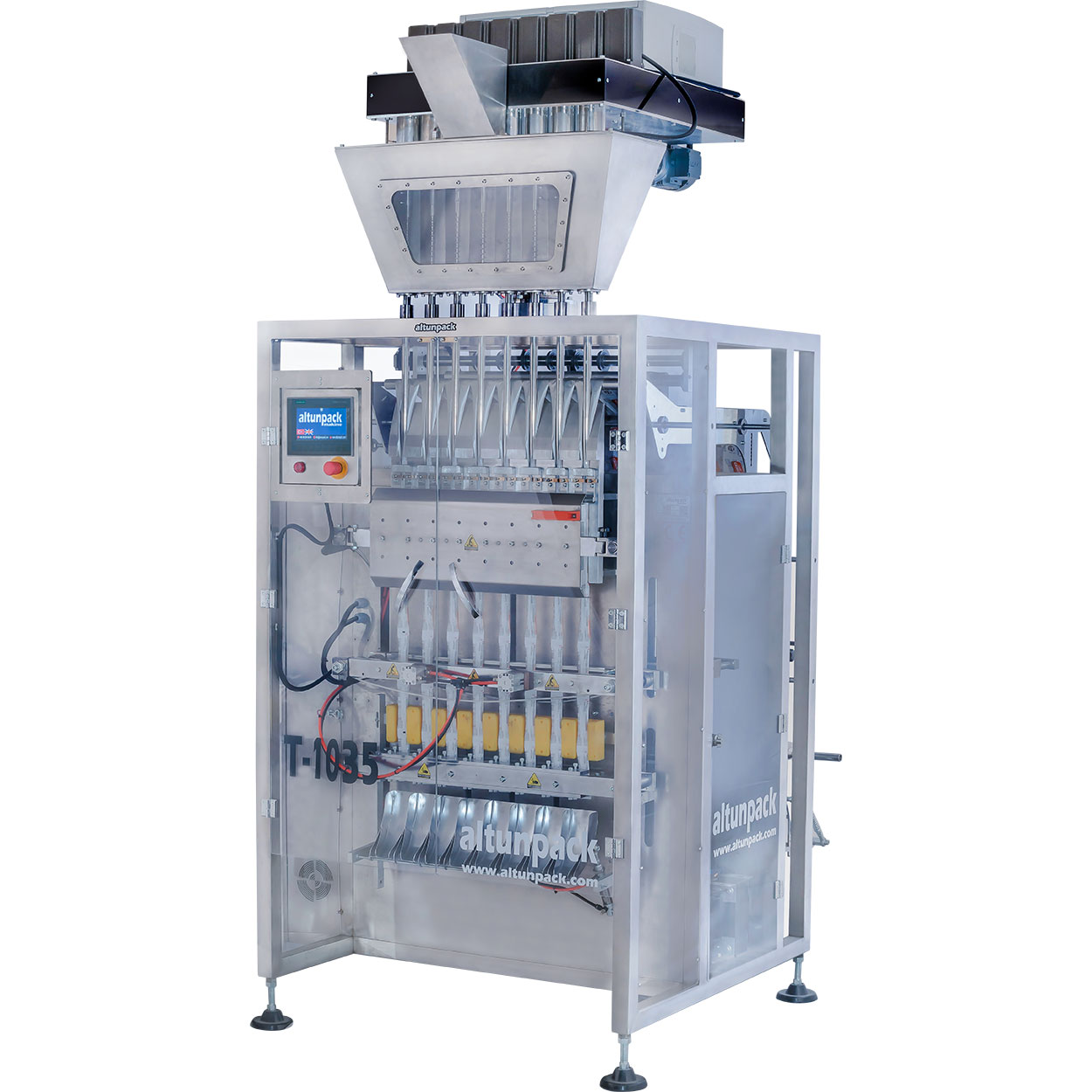

MULTI-LINE POWDER FILLING MACHINE

MULTI-LINE POWDER FILLING MACHINE
Altunpack Makine
MULTI-LINE POWDER FILLING MACHINE  General Features
» Screw filling system
» Air Shaft 3"
» Touch color control panel
» The movable coil stand provides end-to-end control.
» In the filling screws, intelligent motors independent of one are used.
» Internal conveyor belt.
» Production record keeping.
» Advanced intelligent software.
» Software update over the Internet.
» Non-Stop or Start stop production thanks to advanced intelligent software.
» Free Operator training and support
Technicial Specifications
Stick Package Width (Fixed) 35 mm
Stick Package Length Range 40 - 180 mm
Stick Filling Weight 5 gr. - 20 gr.
Filling System Screw
Width Of Packaging Roll Film 240 mm
Packing Roll Core / Tube Diameter 76 mm - 3 rulo
Number Of Lines 8 lines
Production Capacity 200 packs / min.
Machine Frame / Body Quality 304 quality stainless chrome steel
Dimensions G.110 x U.140 X Y.280 cm
Weight 530 kg.
Electricity Requirement 220 V. 50 hz. 3.5 kw / s.
Motor Power 0,75 KW.
Compressed Air Consumption 125 l / d.
Working Pressure 5 bar
Used Packaging Material Laminated packaging, OPP, Coated, metallized. Between 40 and 90 gr./m²
Pistons FESTO
Air conditioning unit FESTO
Photocell SICK
Driver SIEMENS
PLC SIEMENS
Touch screen SIEMENS
Switchgear Materials SIEMENS






Nescafe 3-in-1 filling and packing machines:

With this machine that enters the group of vertical stick packaging machine, Nescafe can pack and pack in 3-in-1 packaging as well as similar products. For example: for milk powder packaging, for coffee cream packing, for coffee whitener, for packing cappuccino, for packaging of Turkish coffee, powdered sugar, flour, cream, salt grass, spices, packaging, pesticides, medical drugs, cosmetic products and so on. Filling and packaging of products without self-fluidity can be done fully automatically.

According to the products and the weight of the production of different sizes according to the screw packaging machines, the package width is determined when the machine is produced and remains constant. The length of the package can be changed.

For example: Nescafe 2si1 3-in-1 stick packages are 35 mm wide. The desired length can be changed according to the weight of the packages.

Package weights are determined according to different weights and products. The main element that determines the package width is the structure of the product to be packed and the amount of product to be put into the package.

The number of lines / channels in the vertical packaging machines determines the production capacity of the machine. For example, the 4-line instant coffee machine produces 140 packages per minute, while the 6-line instant coffee machine produces 210 packages. On stick packaging machines, the capacity is determined by line numbers.

For more information on instant packaging packaging, please refer to our News section, Packaging materials and varieties page.

In order to get information about our machines, please send an e-mail to info@altunpack.com. Or you can reach +90 212 674 54 74 phone number.

Detailed Product Information
MULTI-LINE POWDER FILLING MACHINE 2
